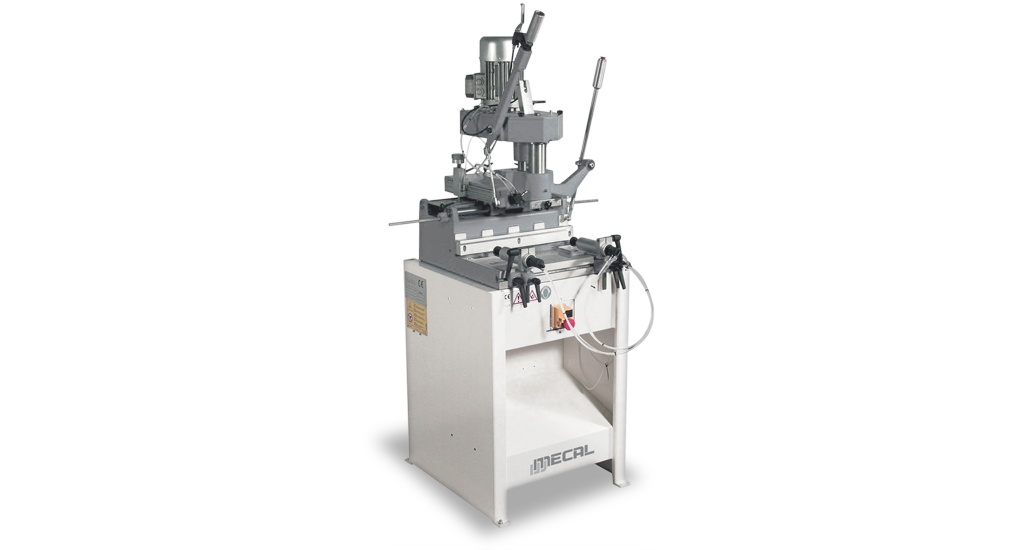

ONE-SPINDLE COPY ROUTER
Suitable for passing workings.
Manual working cycle.
2-speeds spindle by changing the belt position.
Double acting pneumatic copy finger.
Pneumatic locking of the spindle at the required height position.
Maximum routing capacity despite the compact construction.
Simply tool changing thanks to self-releasing system
EQUIPMENT
Copying finger with three diameters (n. 2)
Mechanical stop reference mounted on the rod (n. 1 pair)
Pair of horizontal pneumatic clamps.
Universal copying template
Routing capacity mm 240 x 120
Vertical stroke mm 110
Clamping capacity mm. 220x100
mm. 270x130
Rotating tool speed rpm 2040-11200
Power of the motor kw 0,75
