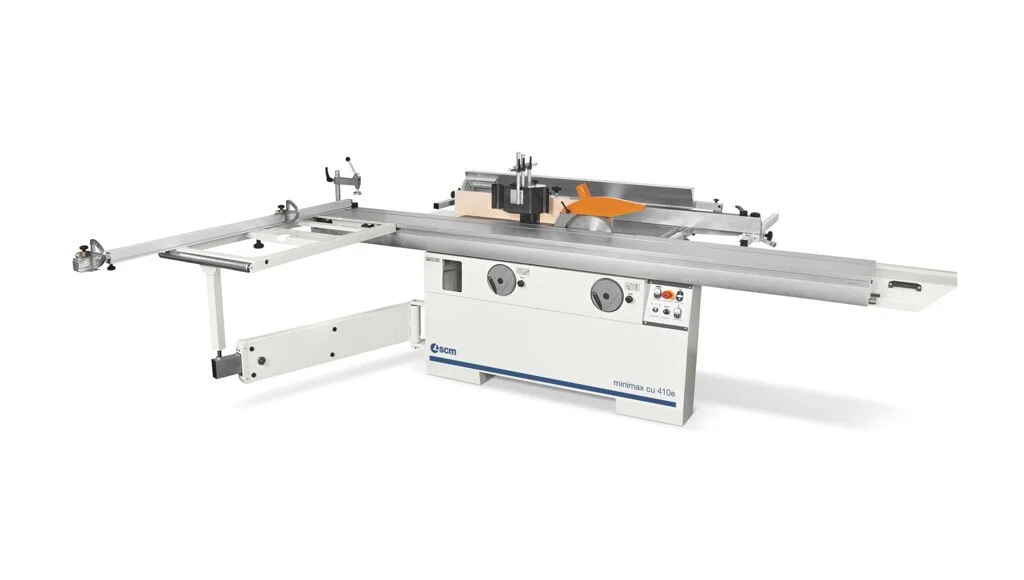

Universal combined machine with all minimax quality, at the most affordable price, ideal for demanding hobbyists and crafts woodworking workshops.
The distinctive features of all our combined woodworking machines are:
EASE-OF-USE
The system of surfacing worktable opening toward the inside of the machine guarantees an excellent ergonomics.
All woodworking combined machines are equipped with anodized-extruded guides with support and rapid locking and an effective feeding system for the planer. These features make these machines easy-to-use for any type of machining.
FLEXIBILITY
Maximum flexibility when using the cutters, with the spindle moulder unit equipped with various speeds. The machines are equipped with spindle moulder hood with micro metric adjustment, very useful for moulding working.
The tenoning operations (option) are easy tank to the aluminium carriage and the dedicated speed
PRECISION
A tiltable saw unit, with sliding of the anodized aluminium carriage next to the blade for a better cutting precision are only some of the standard equipment of the minimax woodworking combined machines.
The lifting and tilting of the unit with practical hand wheels guarantee an easy setting among different machining.
SAFETY
Rich CE safety devices, like the shaft protection to carry out shaping operation and working on curved profiles. The machining on the planer is very easy thanks to the large dimensioned surfacing tables
Stabilidy and rigidity
The new saw unit closed loop structure is made of a heavy cast iron and is supported firmly under the table by two lateral supports in a crescent shape. These solutions give strength and rigidity, guaranteeing perfect cutting results. The saw unit can be equipped, on request, with scoring blade for perfect cutting even on veneered panels. The scoring blade is an optional available in two versions: with belt transmission from the main motor and with an independent motor 0.75 HP (0.55 kW). The maximum diameter allowed for the main saw is 315 mm with scoring blade mounted.
Versatility
Maximum stability and rigidity in all working conditions, thanks to a large spindle moulder column made entirely of cast iron. The 4 standard speed are ideal for any type of machining, from moulding to routing and tenoning, with the possibility to fit tools up to 275 mm of diameter.The spindle is surrounded by a cast iron “cup” to protect the internal mechanical components from shavings and sawdust.
Perfect finishing
The planer unit stands on cast iron supports and the standard version has a 87 mm diameter cutter block with 3 knives. (The optional “Tersa” cutter block is available with 4 quick tightening knives and automatic adjustment). For an impeccable finish, the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The infeed roller has a helicoidal profile to guarantee firm and constant work piece feed, while the out-feed roller, in sandblasted steel, maintains the perfect post-processing finishing.
Two feed speed
Two feed speed for the standard thicknesser (6 - 12 m/min.). The planers open towards the circular sawspindle moulder side: an ergonomic solution with minimum amount of space.
Cutterhead working width mm 410
Jointer bed length mm 2000
Max. sawblade diameter with scoring blade installed mm 315
Sawblade arbor size mm 16
Max. sawblade projection from table at 90°/45° mm 107/71
Cutting width on parallel fence (Rip capacity) mm 915
Max. useful spindle length mm 125
Max. tool diameter when profiling mm 210-240
(3x) Single-phase motors Hp 4.8
Max. squaring stroke of sliding table saw mm 2600
Cutterblock diameter / n° of standard knives mm/n° 87/3
Dimension of standard knives mm 410 x 30 x 3
