Universal combined machine with all minimax quality, at the most affordable price, ideal for demanding hobbyists and crafts woodworking workshops.
The distinctive features of all our combined woodworking machines are:
EASE-OF-USE
The system of surfacing worktable opening toward the inside of the machine guarantees an excellent ergonomics.
All woodworking combined machines are equipped with anodized-extruded guides with support and rapid locking and an effective feeding system for the planer. These features make these machines easy-to-use for any type of machining.
FLEXIBILITY
Maximum flexibility when using the cutters, with the spindle moulder unit equipped with various speeds. The machines are equipped with spindle moulder hood with micro metric adjustment, very useful for moulding working.
The tenoning operations (option) are easy tank to the aluminium carriage and the dedicated speed
PRECISION
A tiltable saw unit, with sliding of the anodized aluminium carriage next to the blade for a better cutting precision are only some of the standard equipment of the minimax woodworking combined machines.
The lifting and tilting of the unit with practical hand wheels guarantee an easy setting among different machining.
SAFETY
Rich CE safety devices, like the shaft protection to carry out shaping operation and working on curved profiles. The machining on the planer is very easy thanks to the large dimensioned surfacing tables
Unique in the world in its category! The cast iron saw unit with a rigid closed loop structure can accommodate a blade of max. 400 mm diameter (for si 400es and Nova si 40) with the scoring blade mounted, ensuring perfect and easy cutting of veneer panels and thick solid wood material. The saw blade uses 100% of the motor power, thanks to the scoring blade with an independent motor as standard. The rotation fulcrums of the saw unit have a 120 mm diameter and stand on steady crescent shaped rests that separate it from the base: a rigid reliable solution.
Unsurpassed moulding
Maximum stability and rigidity in all working conditions, thanks to a large spindle moulder column made entirely of cast iron. The 4 standard speed are ideal for any type of machining, from moulding to routing and tenoning, with the possibility to fit tools upto 320 mm of diameter (300 mm no CE).
Perfect finishing
The planer unit stands on cast iron supports and the standard version has a 87 mm diameter cutter block with 3 knives. (The optional “Tersa” cutter block is available with 4 quick tightening knives and automatic adjustment). For an impeccable finish, the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The infeed roller has a helicoidal profile to guarantee firm and constant work piece feed, while the out-feed roller, in sandblasted steel, maintains the perfect post-processing finishing.
Stability over time

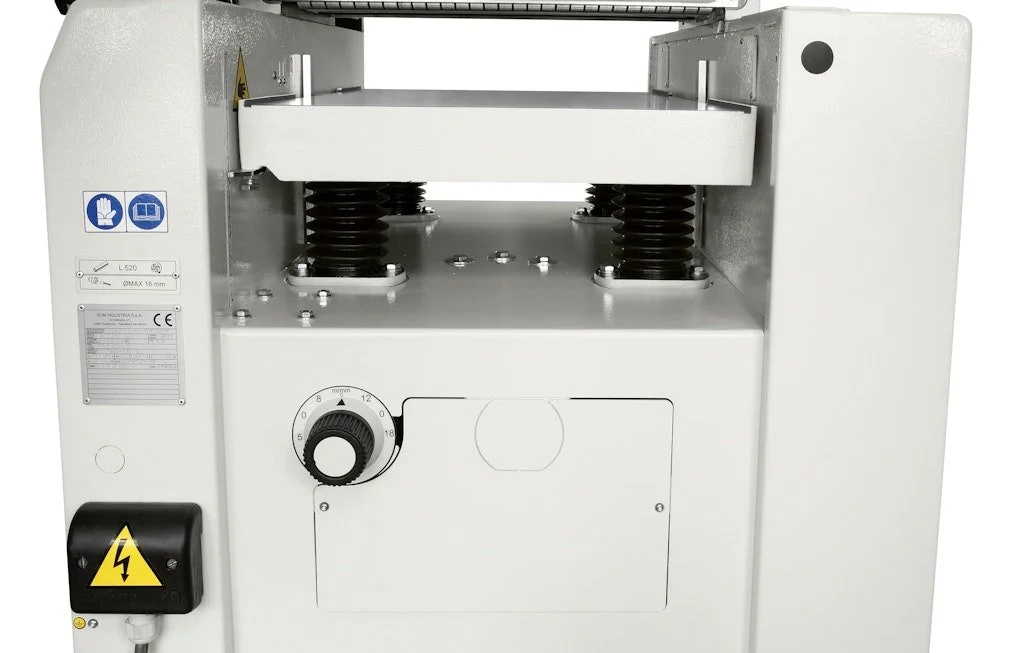

Comfortable and precise planing. The Elite S series adopt ergonomic solutions like the 2200 mm surfacing tables, in ribbed cast iron, with simultaneous opening towards the inside of the machine with a 90° angle. For a maximum long lasting stability the cast iron thicknessing table lifts on 4 spindles with trapezoidal threads dust protected.
Cutterhead working width mm 410
Jointer bed length mm 2200
Max. sawblade diameter with scoring blade installed mm 350
Sawblade arbor size mm 25
Max. sawblade projection from table at 90°/45° mm 118/84
Cutting width on parallel fence (Rip capacity) mm 1000
Max. useful spindle length mm 125
Max. tool diameter when profiling mm 240
(3x) Three-phase motors Hp 8
Max. squaring stroke of sliding table saw mm 2600
Cutterblock diameter / n° of standard knives mm/n° 95/4
Dimension of standard knives mm 410 x 30 x 3
