Surfacing-thicknessing machine for the demanding craftsmen and carpentries, for a high-flexible production with an “elite” finishing.


ADVANTAGES

Perfect finish

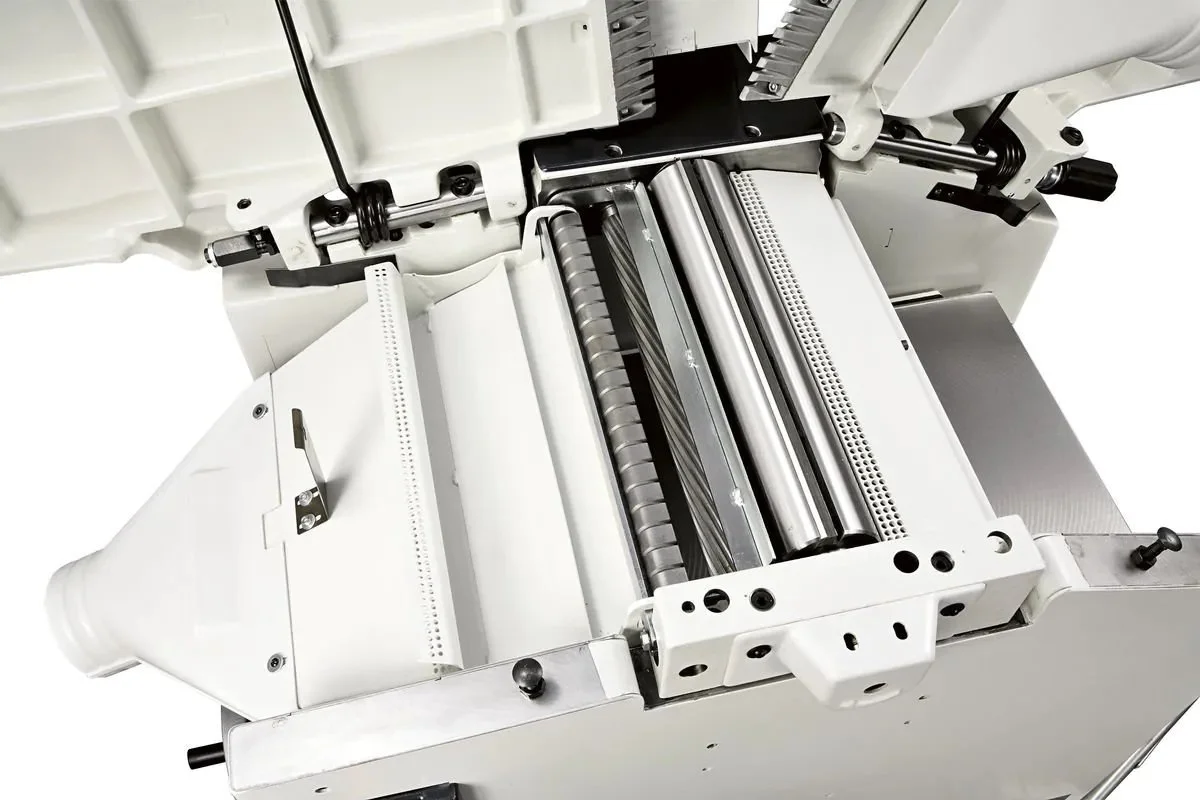

An optimal planing with minimal effort, thanks to the 95 mm diameter cutter block  and 4 knives. For an impeccable finish the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The roller infeed has a helicoidal profile to guarantee firm and constant work piece feed, while the outfeed roller in sandblasted steel maintains the perfect post-processing finishing.

Stability over time
For a maximum long lasting stability the cast iron thicknessing table lifts on 4 spindles with trapezoidal threazds dust protected.

High rigidity
High rigid fence with a smooth movement thanks to the central locking on round bar.

“Xilent” spiralknife cutter block with 3 series of knives
The 3 spiralknives give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.

Cutterhead working width                                             mm                410
With XYLENT Spiral helical Cutterhead:
Cutterblock diameter / no° of standard knives         mm / n°          95 / 4
Dimension of standard knives                                     mm                410 x 30 x 3
Max. stock removal                                                      mm                5
Jointer table length                                                       mm                2200
Planer table dimensions                                               mm                410 x 775
Planer feed speeds                                                       m/min            6 / 12
Min. - max. planer working height                             mm                3 - 240
Three-phase motor                                                      Hp                  8
Fence tilt                                                                     degrees           0 - 45
