Easy to use with rapidity combined with high productivity.
Great performance in a limited space.
ADVANTAGES
Optimal planing with the 120 mm diameter cutter block and 4 knives. For an impeccable finish the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The roller infeed has a helicoidal profile to guarantee firm and constant work piece feed, while the outfeed roller in sandblasted steel maintains the perfect post-processing finishing.
Perfect planarity thanks to the simultaneous raising of the work tables. The system allows the changeover from planer to thicknesser with a single movement ensuring working rapidity and precision.

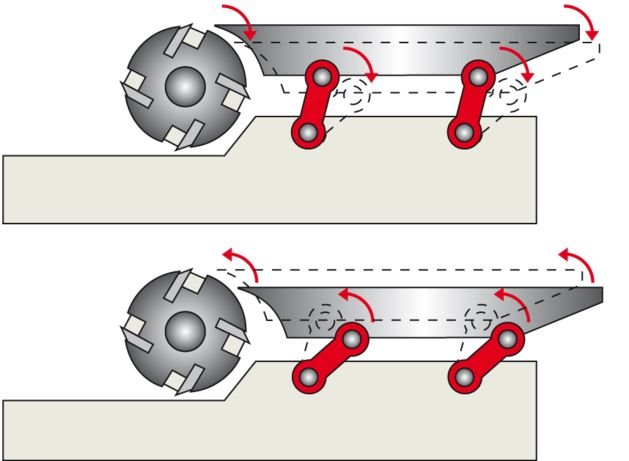

Precision that lasts a lifetime without noise with the system on connecting rods. The system guarantees the maximum movement fluidity and avoids deformations of the work table. This guarantees maximum stability, reliability and ergonomics.
Exceptional finish with the “Xylent” spiral knife (3 spiral knives)
Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.
Working width mm 520
Cutterblock diameter/standard knives) mm/no. 120 (4)
Motor power kW (HP) 7 (9,5)
Surface planer
Total tables length mm 2250
Surface fence dimensions mm 1200x190
Surface fence tilting from 90° to -45°

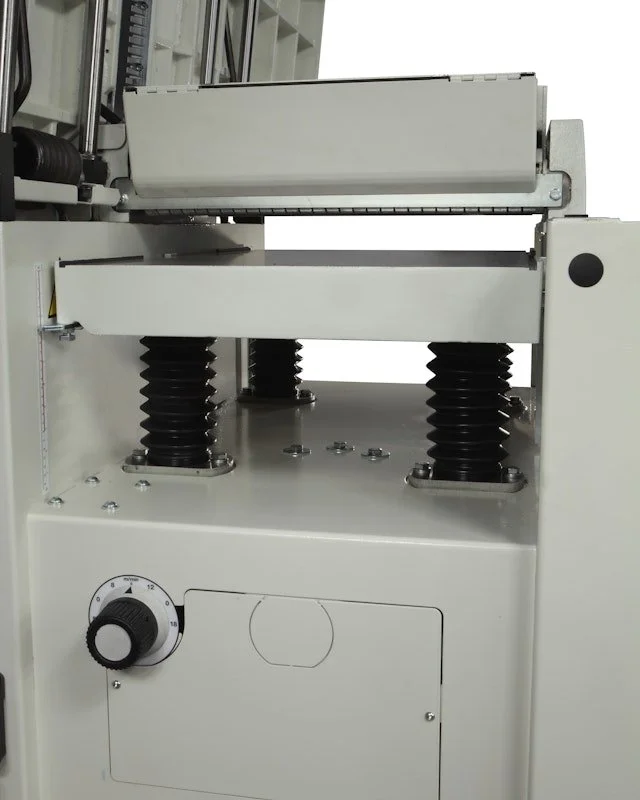

Thicknessing planer
Work table dimensions mm 520x850
Working height (min./max.) mm 3/240
Feed speed m/min 5-8-12-18
