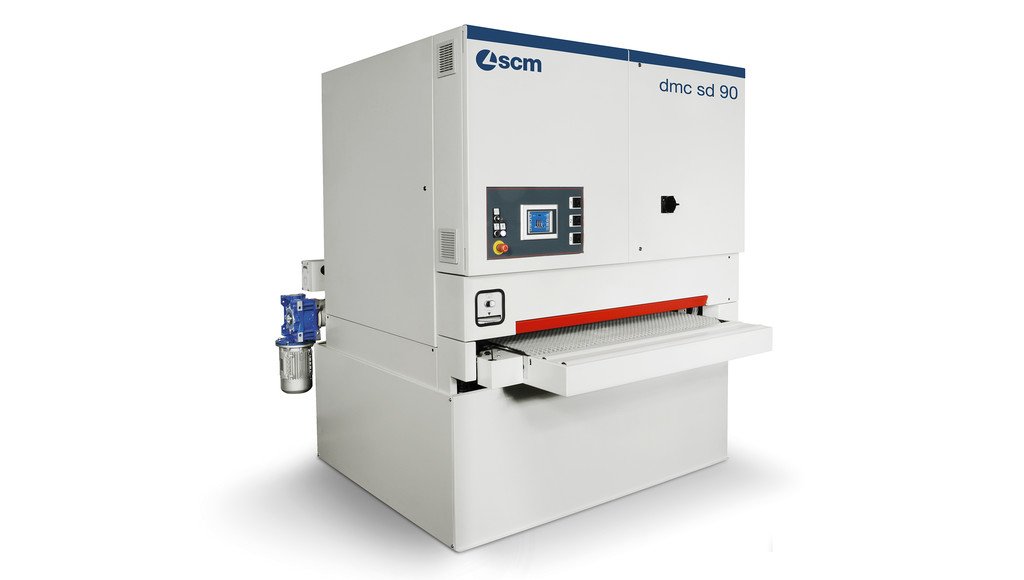

Maximum performance for companies increasing production. Designed for the medium to high industrial companies that require diversified machining, dmc sd 90 satisfies all calibrating and sanding requirements, by offering a wide range of technological solutions allowing the possibility of customizing the machines compositions. The availability of offering many types of operating units such as planing units, roller units (with 175, 220, 250 and 320 mm diameters), pad units and superfinishing units guarantees the very best results on solid wood, veneer, lacquer and paint operations.
ADVANTAGES

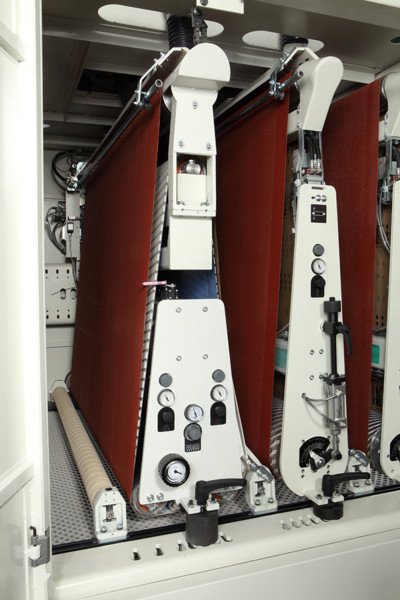

Superfinishing unit: for sanding at the highest level
Uniform finish with the Chevron belt which improves the cooling of the abrasive action on the work piece, the wide contact surface and the copying capacity of the “MESAR” electronic pad. The unit is particularly suitable for the superfinishing of solid wood components, MDF panels that have been laminated, veneered or painted (opaque and polished).

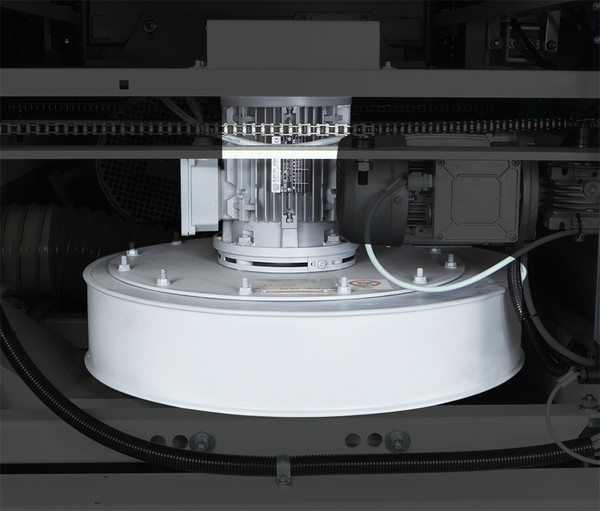

Integrated electro-fan provides extreme compactness. Reduced overall dimensions and noise emissions with the device positioned under the work table.
“Mesar” sectional pad: the best finish with any material. Higher quality results due to the special shape of the sectors that allows the operator to intervene “softly” but also in an “aggressive” way, simply by varying the working pressure. The setting of the pad position and the possibility of using foils of different thickness increases its versality.
LOGIC TS control: programming work becomes simple and effective.
With LCD display and touch-screen function, it allows the complete and safe control of the machine, easily and intuitively.
The possibility to store up to 120 work programs to retrieve the machine settings most commonly used makes it perfect even for unskilled operators.
