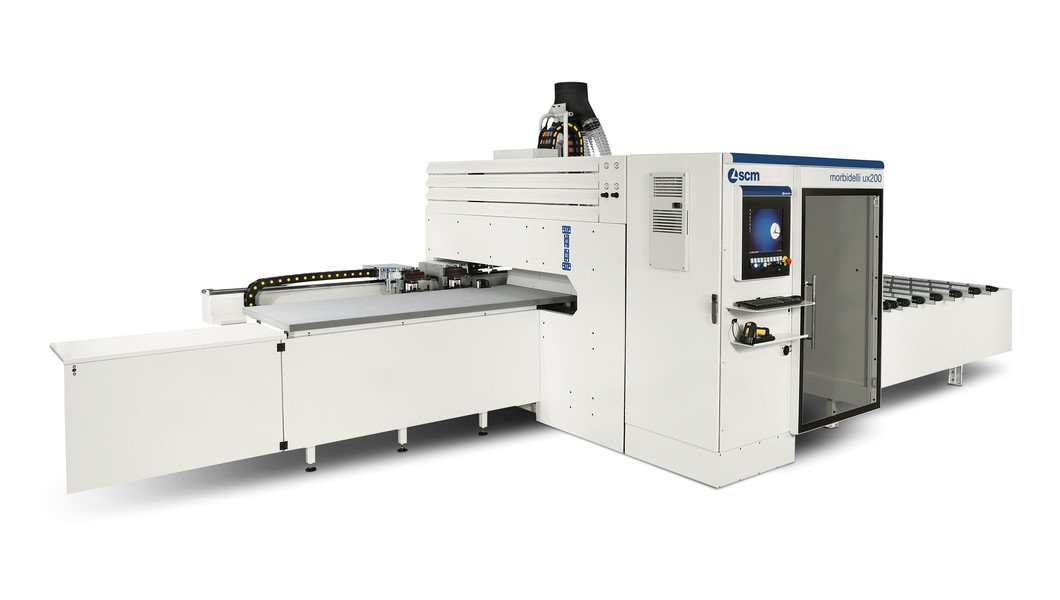

Machining centre realized to satisfy all the operations of drilling, routing, cutting and hardware insertion, the only one in which the high efficiency of a through-feed boring machine joined to the maximum flexibility of a working centre lead to the maximum performance. It is equipped with upper and lower units to allow simultaneously working on the opposite faces.
Thanks to the highest versatility and to the different displacement systems of the pieces with automatic loading-unloading devices morbidelli ux200 can work integrated in line or as stand-alone machine..
ADVANTAGES
OPTIMISATION AND REDUCTION IN CYCLE TIMES: HOLD-DOWN GRIPPER
The panel hold-down grippers with X independent movement allow drilling and routing operations also in positions inside the gripper area thanks to new geometry, optimizing the re-clamping of the workpiece, reducing the cycle times and allowing to process on all 6 faces of the panel.
THE PERFECT DRILLING: RO.AX SPINDLE
Zero play during machining with the new RO.AX technology (Rotoaxial spindle technology), the most efficient spindle on the market with rotation speeds up to 8000 rpm. The sturdiness of drilling heads is proven by the reduced maintenance costs: five times less than that imposed by the majority of other machine manufacturers.
ACCURACY AND PRECISION: PRESSURE DEVICE
The 3 pneumatic pressure devices equipped with support rollers guarantee the perfect reference of the panel on the worktable next to the area of X and Y horizontal drilling, assuring the accuracy of Z quote.
